Product Details:
|
| Product Name: | Electronic Galvanized Welded Wire Mesh In Construction | Hole Shape: | Square |
|---|---|---|---|
| Wire Gauge: | 2.0-4.0mm | Application: | Construction Wire Mesh |
| Material: | Low-Carbon Iron Wire,Galvanized Iron Wire,Plastic Coated Iron Wire,PE Wire,low Carbon Steel | Type: | Welded Mesh , Electric Wire Mesh , Panel Or Roll |
| Surface Treatment: | Galvanized | Length: | 30m , 50m , 10m , 5m , 25m |
| High Light: | 2x2 Galvanized Welded Wire Mesh,6x6 Welded Wire Mesh,4.0mm Galvanized Square Hole Wire Mesh |
||

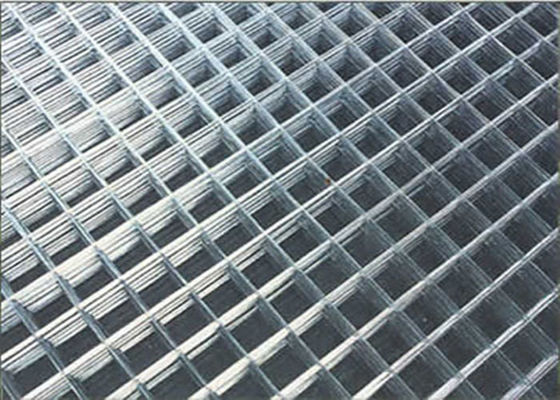

Electronic Galvanized Welded Wire Mesh In Construction
Welded Wire Mesh Specification
| In inch | Space | Wire Dia. |
| 1/4" x 1/4" | 6.4 x 6.4mm | BWG24-22 |
| 3/8" x 3/8" | 10.6x 10.6mm | BWG22-19 |
| 1/2" x 1/2" | 12.7 x 12.7mm | BWG23-16 |
| 5/8" x 5/8" | 16x 16mm | BWG21-18 |
| 3/4" x 3/4" | 19.1 x 19.1mm | BWG21-16 |
| 1" x 1/2" | 25.4x 12.7mm | BWG21-16 |
| 1-1/2" x 1-1/2" | 38 x 38mm | BWG19-14 |
| 1" x 2" | 25.4 x 50.8mm | BWG16-14 |
| 2" x 2" | 50.8 x 50.8mm | BWG15-12 |
| 2” x 4" | 50.8 x 101.6mm | BWG15-12 |
| 4” x 4" | 101.6 x 101.6mm | BWG15-12 |
| 4” x 6" | 101.6 x 152.4mm | BWG15-12 |
| 6” x 6" | 152.4 x 152.4mm | BWG15-12 |
| 6” x 8" | 152.4 x 203.2mm | BWG14-12 |
Character: weaving and welding
Processing of weled wire mesh: PVC coated after welding
or electro galvanized,hot dipped zinc coated
Feature:
Usage: as fencing in highway,railway,airport,resident,feeding animal,etc
Weled Wire Mesh Packing and Delivery
