Product Details:
|
| Prodution Name: | Steel Fiber 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement | Material: | Drawing Wire 6.5mm |
|---|---|---|---|
| Coated: | Annealed | Tensile Strength: | >1070Mpa |
| Shape: | 3D Hooked Ends | Application: | Concrete |
| Design: | Insutrial | Warranty: | One Year More |
| High Light: | 2850Mpa Concrete Reinforcement Steel Fiber,0.5*30mm Concrete Reinforcement Steel Fiber |
||

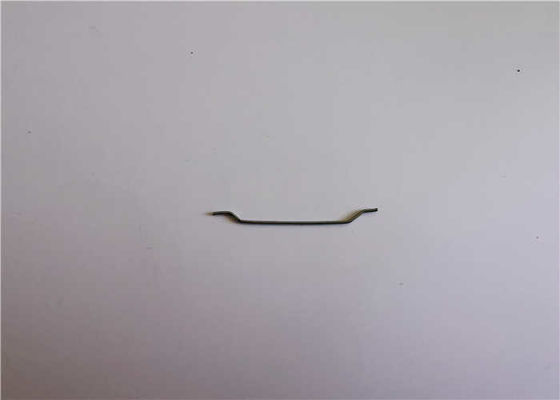

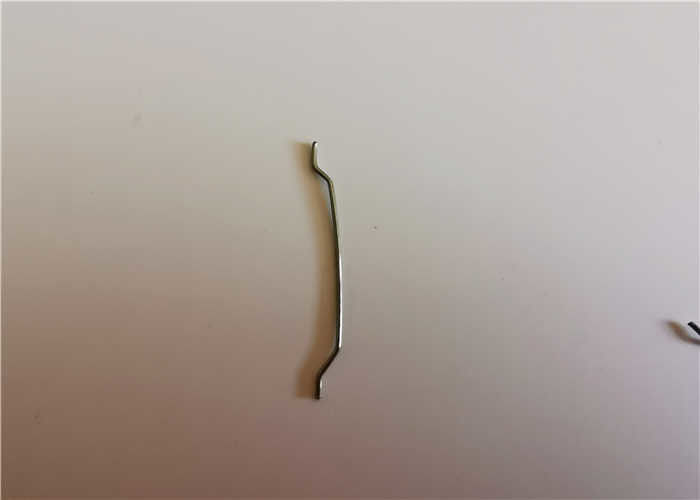

Steel Fiber 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement
Concrete Steel Fiber Introduction
Glued steel fiber and loose steel fiber are the two kinds of concrete fibers.
Steel fibers can be made of steel wire,or glass fiber,Polyethylene.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Adopting steel fibers into the concrete mix provide new mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb.
Steel fibers are popular alternatives in reinforcing concrete for its huge bounding force between the fiber and the concrete, corrosion-resistance and hardness.
Concrete Steel Fiber Specs
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
In mechanical and performance terms, by adding steel fibers to the concrete mix can:
