Product Details:
|
| Product Name: | Endhooked Concrete Steel Fiber In Hydro Power Station For Reinforcement | Material: | Q235 |
|---|---|---|---|
| TS: | 1215Mpa | Color: | Grey And Bright |
| Applicant: | Concrete Support | Diameter: | 0.6mm |
| Standard: | ASTM 820 / CE | Style: | Morden |

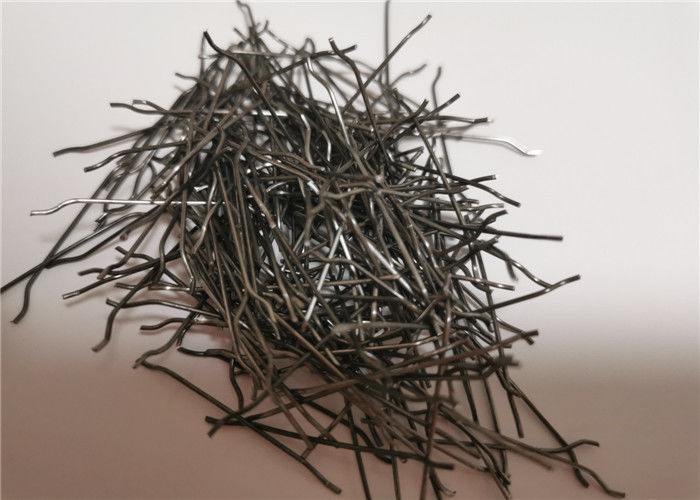

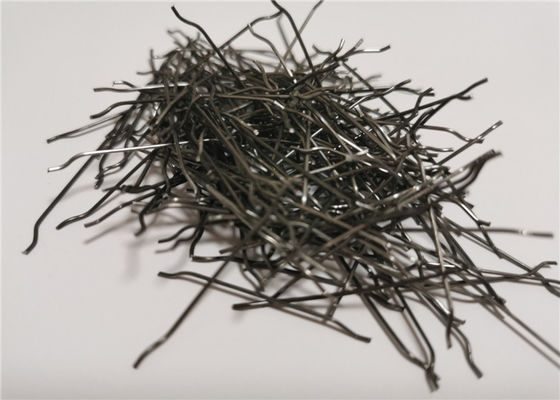

Endhooked Concrete Steel Fiber in Hydro Power Station for Reinforcement
Concrete Steel Fiber introduction
Concrete steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1350MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Refers to loose steel fiber and glued steel fiber.the big difference between loose and glued fibers is that the former is easy to block together and the latter is easy to disperse uniformly.
Specification of Concrete Steel Fiber
| Hooked Ends Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Application:
Dosing and mixing
Products and delivery
