Product Details:
|
Product Name: | Fiber Conrete 45/35 Hooked End Loose Steel Fiber High Tensile Strength Concrete Fiber | Material: | High Quality Wire |
---|---|---|---|
Thickness: | 0.4mm 0.5mm 0.6mm 0.75mm 0.9mm 1.0mm | Surface: | Bright |
Dosage: | 15kgs/m3 | Application: | UHCP |
High Light: | 55/30 Concrete Steel Fiber,Concrete Steel Fiber 0.4mm |

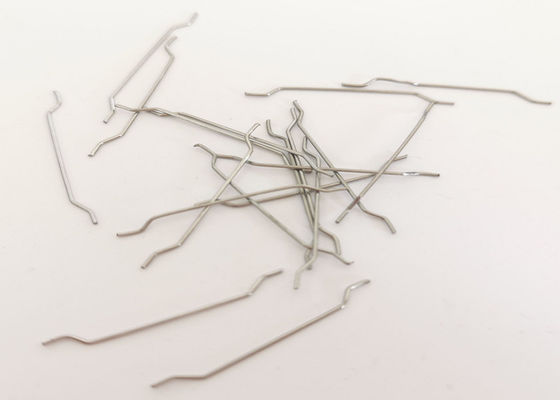

55/30 Hooked End Loose Concrete Steel Fiber High Tensile Strength Resisting Crack
Concrete Steel Fiber Introduction
This concrete steel fiber is made of low carbon steel wire,high carbon steel wire,or stainless steel wire .
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,
impact and fatigue.
It is widely used for buildings, road surface, bridges, tunnels, airport road surface,water conservancy
projects, military engineering, hydro-project and all kinds of building products.
Concrete Steel Fiber Specification
Concrete Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Concrete Steel Fiber Mixing Proportion
Areas of application | LBS/Y3 | (KG/M3) |
Industrial Ground Floor Slabs | 20-120 | 12-72 |
Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
Dolomite | 80 | 48 |
Cemetery | 25 | 15 |
Cement Slurry | 40-120 | 20-72 |
Military Structure | 160-200 | 95-120 |
Cement Conduits | 100-120 | 60-72 |
Cesspools | 40 | 24 |
Shotcrete | 40-60 | 24-36 |
Roads | 20-25 | 12~15 |
FAQ:
1.Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2.How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
Advantage:
Package and Delivery
