Product Details:
|
| Product Name: | 60/60 Hooked End Loose Concrete Carbon Steel Fiber For Reinforced In Infrastructure | Key Words: | Steel Fibre |
|---|---|---|---|
| Diameter: | 1.0mm | Length: | 60mm |
| Color: | Black And Smooth | Material: | Annealed Wire |
| Stanadard: | ASTM A 820 | Packing: | 20kgs/bag |

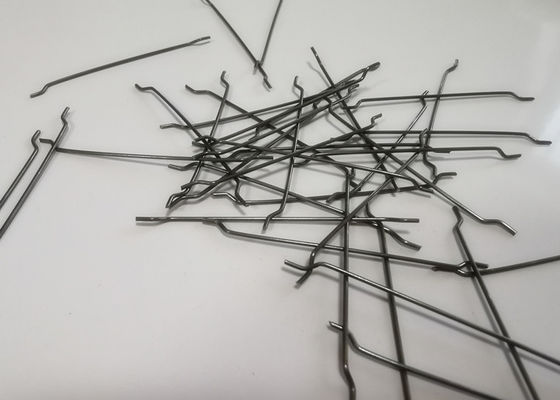

60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure
Concrete Steel Fiber Introduction
This concrete steel fiber is made of low carbon steel wire,high carbon steel wire,or stainless steel wire .
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,
impact and fatigue.
It is widely used for buildings, road surface, bridges, tunnels, airport road surface,water conservancy
projects, military engineering, hydro-project and all kinds of building products.
Concrete Steel Fiber Specification
| Concrete Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Concrete Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
| Shotcrete | 40-60 | 24-36 |
| Roads | 20-25 | 12~15 |
Advantage for Concrete Steel Fiber:
1. Totally or partially replace the steel bar,save material and labor cost
2. Make the concrete slab thinner
3. Wider joint spacing
4. Easy to use
5. Speed up the process of construction
6. Insisting crack
Package and Delivery
