Product Details:
|
Product Name: | Endhooked 65/35 Glued Steel Fiber | Surface: | Non Coated |
---|---|---|---|
Tensile Strength: | 1300Mpa | Shape: | Endhooked |
Packing: | 1000kgs/big Bag | Application: | Precast Panel |
High Light: | 65/35 Hooked Steel Fiber,1300 Mpa Hooked Steel Fiber |

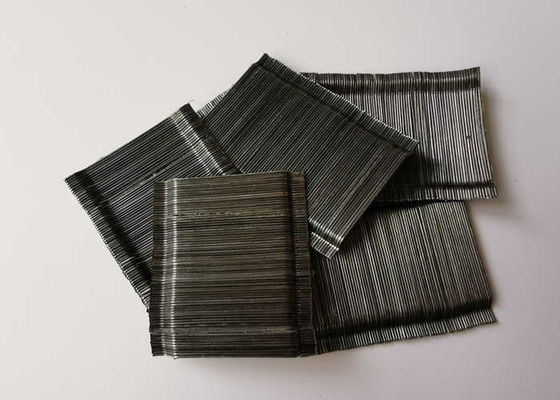

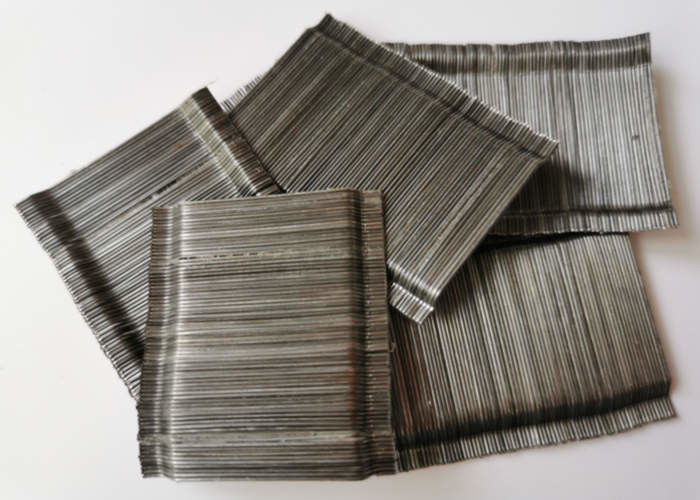

Endhooked 65/35 Glued Steel Fiber
Glued Steel Fiber Introduction:
Glued steel fiber refers to loose steel fiber glued together in a row way.
It is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Glued Steel Fiber Specs:
Glued Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60BG | 1 | 60 | 60 | ≥1100 | |||||
YS-50/50BG | 1 | 50 | 50 | ≥1100 | |||||
YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | |||||
YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | |||||
YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | |||||
YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | |||||
YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | |||||
YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25BG | 0.4 | 25 | 60 | ≥1100 |
Why should use steel fiber?
Glued Steel fiber are increasingly fully or partially replaced steel rebar and wire mesh because of its outstanding performance of post-crack strength and crack control.
Property of Glued steel fiber replacing bar?
Steel fibers are popular alternatives in reinforcing concrete for its huge bounding ability between the fiber and the concrete, corrosion-resistance and hardness.
Package and Delivery:
Exhibition
