Product Details:
|
| Product Name: | Endhooked Carbon Fiber Concrete Steel Wire Fiber For Concrete | Type: | Single Hooked Ends |
|---|---|---|---|
| TS: | >1171Mpa | Color: | Bright |
| Packing: | 1200kgs/bag | Applicant: | High Speed Railway |
| High Light: | Endhooked Carbon Steel Fiber,0.4mm Concrete Steel Fibre |
||
Endhooked Loose Concrete Fiber Steel Wire Fiber For Concrete

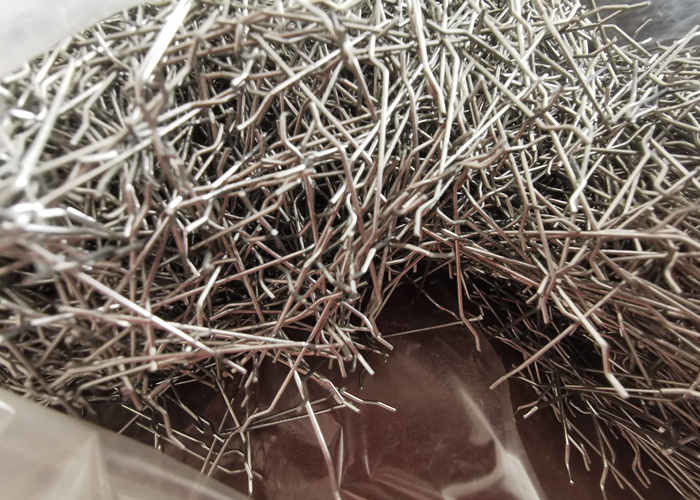

Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, this cold drawn steel wire has excellent mechanical properties including high tensile strength. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Steel fibers use as reinforcement in many concrete elements and applications. There are many kimds of styles, shapes and sizes of steel fibers in the market.Such as loose steel fiber,glued steel fiber,stainless steel fiber,micro steel fiber and so on.
Steel Fiber in the concrete mixed can provide new mechanical properties,which can improve mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance in the concrete reinforcement.
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Mixing proportion of Hooked Ends Steel Fiber
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
FQA
1. How long for the transit time?
To South-East Asia,generally 5-20days on sea,Europe takes 30-40day,
US needs10-15day,while South America 30-50days.
2. How is the package?
Small bag, bulk bag,carton avaiable.
3. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
4. Which portt do you always choose?
Tianjin port,Beijing airport,Qingdao port,Shanghai port.
