Product Details:
|
| Prodution Name: | Steel Fiber 0.4*25mm Concrete Steel Fiber For Concrete Reinforcement | Material: | Drawing Wire |
|---|---|---|---|
| Tensile Strength: | >1170Mpa | Shape: | 3D Hooked |
| Application: | Concrete Panel | Coated: | None Galvanized |
| Standard: | JG/T 472-2015 | Warranty: | 365 Days |
| High Light: | 0.4*25mm Concrete Steel Fiber,JG/T 472-2015 Concrete Steel Fiber,ISO Industrial Steel Fiber |
||

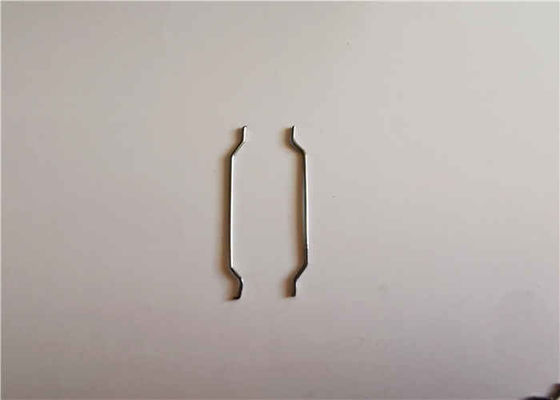

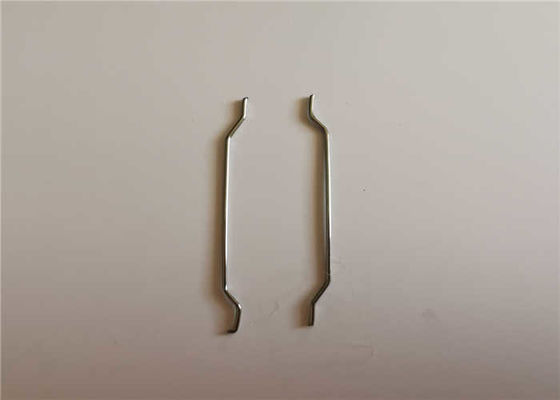

Steel Fiber 0.4*25mm Concrete Steel Fiber For Concrete Reinforcement
Concrete Steel Fiber Introduction
Glued steel fiber and loose steel fiber are the two kinds of concrete fibers.
Steel fibers can be made of steel wire,or glass fiber,Polyethylene.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Steel fiber today offer the designer and constructor state-of-the-art technology for use as reinforcement in many concrete elements and applications. There are varieties of styles, shapes and sizes of steel fibers in the market.Such as,loose steel fiber,glued steel fiber,stainless steel fiber,micro steel fiber and so on.
Adopting steel fibers into the concrete mix provide new mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb
Concrete Steel Fiber Usage
Concrete Steel Fiber Specs
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
In mechanical and performance terms, by adding steel fibers to the concrete mix can:
