Product Details:
|
| Prodution Name: | Carbon Steel 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement | Material: | Q195 Drawing Wire |
|---|---|---|---|
| Coated: | Non Galvanized | Tensile Strength: | >1178Mpa |
| Shape: | 3D Deformed | Application: | Hydropower Sation |
| Dosage: | 20kgs/m3 | Design Style: | Modern |
| High Light: | 0.5*30mm Concrete Steel Fiber,Hydropower Station Concrete Steel Fiber,3D Deformed Steel Fiber |
||

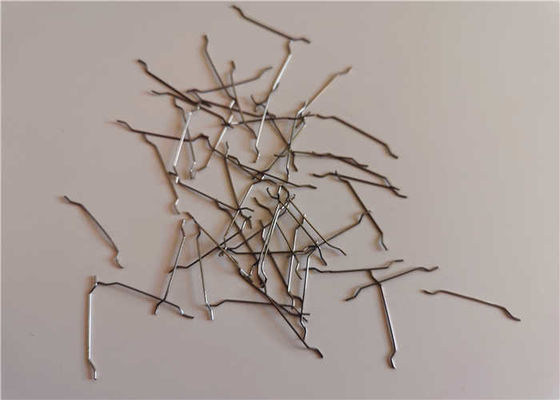

Carbon Steel 0.5*30mm Concrete Steel Fiber For Concrete Reinforcement
Concrete Steel Fiber Introduction
Glued steel fiber and loose steel fiber are the two kinds of concrete fibers.
Steel fibers can be made of steel wire,or glass fiber,Polyethylene.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Steel fiber are increasingly fully or partially replaced steel rebar and wire mesh because of its outstanding performance of post-crack strength and crack control.
In mechanical and performance terms, by adding steel fibers to the concrete mix can:
Concrete Steel Fiber Specs
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Yusen Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
