Product Details:
|
Product Name: | Loose Fiber Steel Wire Concrete Steel Fiber In Concrete Strengthening | Key Words: | Steel Fiber |
---|---|---|---|
Diameter: | 0.2-1.0mm | Material: | Wire Rod 6.5 |
Design Style: | Industrial | Package: | Pallet |
Tensile Strength: | 1000-2800Mpa | Coated: | None,annealed Wire |
High Light: | Industrial Loose Steel Fiber,1.0mm Loose Steel Fiber,Loose Type Steel Fiber |

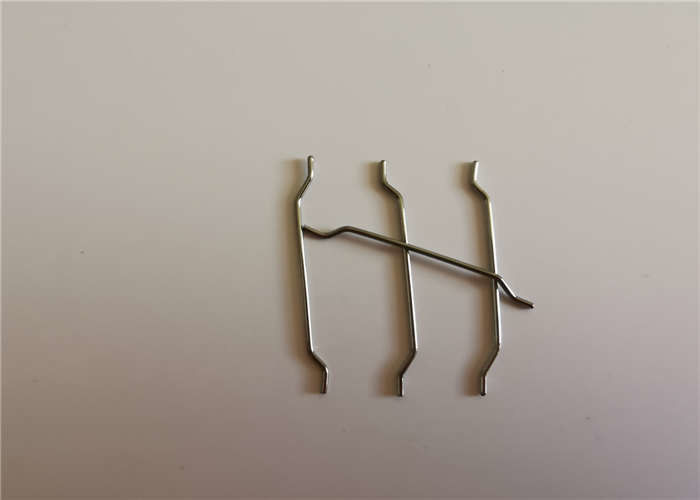

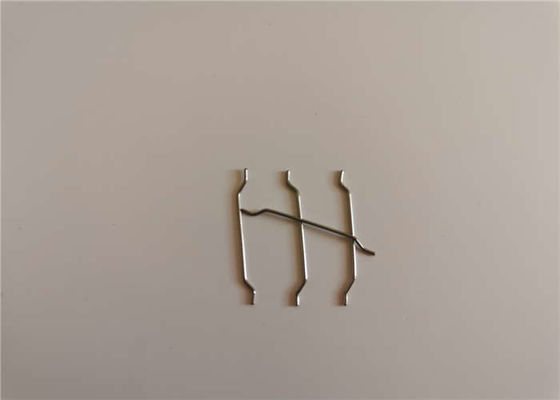

Loose Fiber Steel Wire Concrete Steel Fiber In Concrete Strengthening
Steel Fiber Introduction
Steel fibers can be made of steel wire,or glass fiber,Polyethylene.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Steel fiber today offer the designer and constructor state-of-the-art technology for use as reinforcement in many concrete elements and applications. There are varieties of styles, shapes and sizes of steel fibers in the market.Such as,loose steel fiber,glued steel fiber,stainless steel fiber,micro steel fiber and so on.
Properties of Steel Fiber replacing rebar
Steel fibers are popular alternatives in reinforcing concrete for its huge bounding force between the fiber and the concrete, corrosion-resistance and hardness.
Specifications:
Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Advantage:
1. Totally or partially replace the steel bar,save material and labor cost
2. Make the concrete slab thinner
3. Wider joint spacing
4. Easy to use
5. Speed up the process of construction
