OEM Available Hooked Ends Steel Fiber 1186Mpa For Shotcrete

Hooked Ends Steel Fiber For Shorcrete

Steel Fiber Introduction

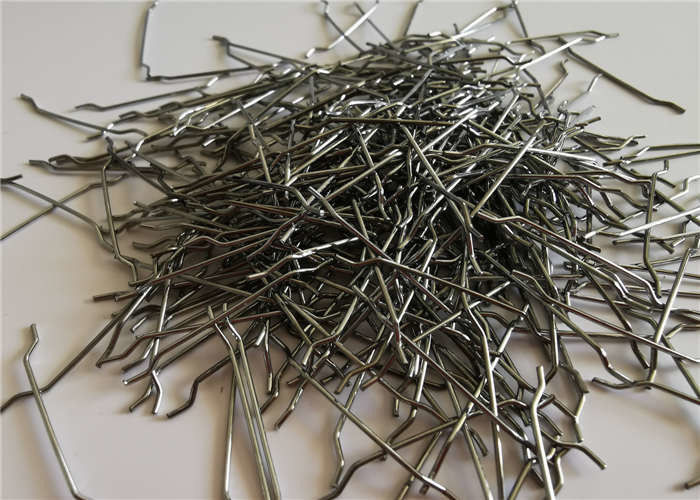

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.

The performance of Steel Fibers depends on both the dosage (kg/m3) and the fiber parameters,like tensile strengths, length, diameter and anchorage. The important factor on quality of Steel Fibers is the relationship between the length and the diameter of the fibers - the higher the aspect ratio, the better the performance.

Specifications:

• Steel Fiber	Model	Diameter (mm)		Length (mm)		Aspect ratio (mm)		Tensile strength (MPa)
  	YS-60/60	1		60		60		≥1000
  	YS-50/50	1		50		50		≥1000
  	YS-65/60	0.9		60		65		≥1000
  	YS-55/50	0.9		50		55		≥1000
  	YS-80/60	0.75		60		80		≥1000
  	YS-45/35	0.75		35		45		≥1000
  	YS-50/30	0.6		30		50		≥1100
  	YS-55/30	0.55		30		55		≥1100
  	YS-65/35	0.53		35		65		≥1100
  	YS-60/30	0.5		30		60		≥1100
  	YS-50/25	0.5		25		50		≥1100
  	YS-60/25	0.4		25		60		≥1100

FAQ:

1. Are you the factory?

Yes, we are, located in the hometown of wire mesh.

2. How far from Beijing airport?

It takes three hours from our factory to Peking airport,about 300km.

3. Can you accept OEM?

Yes, we can.

4. What is your delivery time?

Generally it needs 10days for 20’ container.

Application:

• Shotcrete
• Industrial flooring
• Road pavements
• Refractory material
• Precast concrete structures
• Military project
• Brake pads
