Yusen Concrete Steel Fiber 1170 Mpa Abrasion / Impact Resistance

Single Steel Wire Steel Fiber

Steel Fiber Introduction

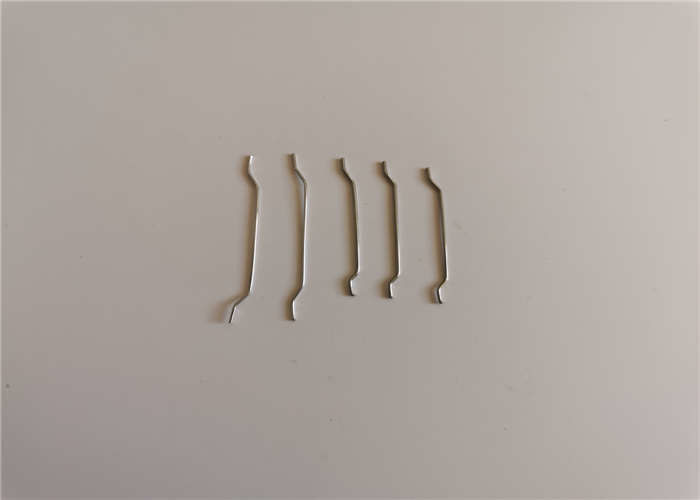

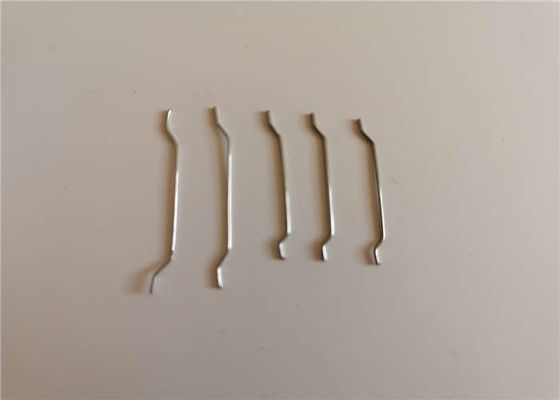

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.

Compared with normal concrete, steel fiber concrete has great improvement in tensile strength, flexural strength, abrasion resistance, impact resistance, fatigue resistance, toughness,crack resistance performance, because numbers of steel fiber is evenly dispersed in the concrete, concrete strength is improved deeply.

In the concrete mixture, add right amount steel fiber can be mixed into a kind of special spray as well as casting concrete, that is steel fiber reinforced concrete.

Specifications:

• Steel Fiber	Model	Diameter (mm)		Length (mm)		Aspect ratio (mm)		Tensile strength (MPa)
  	YS-60/60	1		60		60		≥1000
  	YS-50/50	1		50		50		≥1000
  	YS-65/60	0.9		60		65		≥1000
  	YS-55/50	0.9		50		55		≥1000
  	YS-80/60	0.75		60		80		≥1000
  	YS-45/35	0.75		35		45		≥1000
  	YS-50/30	0.6		30		50		≥1100
  	YS-55/30	0.55		30		55		≥1100
  	YS-65/35	0.53		35		65		≥1100
  	YS-60/30	0.5		30		60		≥1100
  	YS-50/25	0.5		25		50		≥1100
  	YS-60/25	0.4		25		60		≥1100

In mechanical and performance terms, by adding steel fibers to the concrete mix can:

• Increase and get a stable of tensile strength
• Improve concrete bonding
• Increase impact resistance
• Increase fatigue effect
• Increase crack resistance
•   Increase the concrete performance against thermal variations

FAQ:

1.Are you the factory?

Yes, we are, located in the hometown of wire mesh.

2.How far from Beijing airport?

It takes three hours from our factory to Peking airport,about 300km.

3.Can you accept OEM?

Yes, we can.

4.What is your delivery time?

Generally it needs 10days for 20’ container.

Application:

• Shotcrete
• Industrial flooring
• Road pavements
• Refractory material
• Precast concrete structures
• Military project
• Brake pads

 Package and Delivery
