Product Details:
|
Product Name: | 1200Mpa High Tensile Strength Waved Steel Fiber For Concrete Reinforcement | Key Worlds: | Steel Fiber |
---|---|---|---|
Material: | Stainless Steel Wire | Packing: | 20kgs/bag |
Thickness: | 0.5mm | Application: | Highway |
High Light: | 1200Mpa High Tensile Strength Steel Fiber,0.5mm High Tensile Strength Steel Fiber |

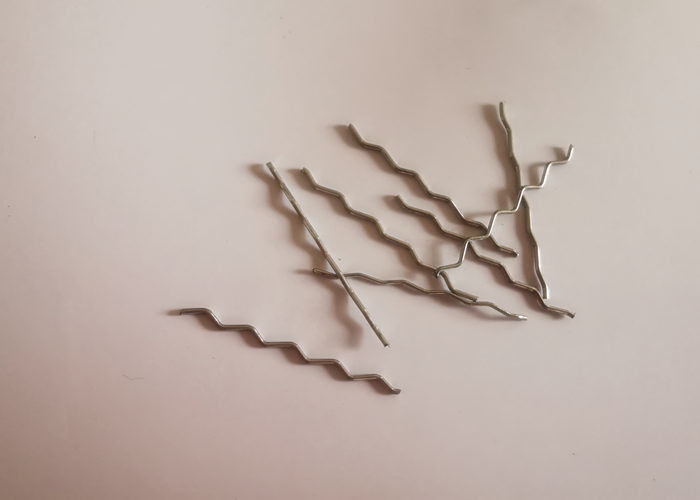

1200Mpa High Tensile Strength Waved Steel Fiber For Concrete Reinforcement
Waved Steel Fiber Specification
Steel fibers can be made of steel wire, glass fiber,Polyethylene or stainless steel wire.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Steel fiber has excellent mechanical properties including high tensile strength.Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specifications of Waved Steel Fiber:
Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Yusen Steel Fiber Mixing Proportion
Areas of application | LBS/Y3 | (KG/M3) |
Industrial Ground Floor Slabs | 20-120 | 12-72 |
Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
Dolomite | 80 | 48 |
Cemetery | 25 | 15 |
Cement Slurry | 40-120 | 20-72 |
Military Structure | 160-200 | 95-120 |
Maritime | 40-160 | 24-36 |
Highways | 50-140 | 30-78 |
Bridge Decks | 50-160 | 30-95 |
Dam and Stabilization | 120 | 72 |
Commercial and Residential slabs | 40-100 | 24-60 |
Cement Conduits | 100-120 | 60-72 |
Cesspools | 40 | 24 |
Shotcrete | 40-60 | 24-36 |
Roads | 20-25 | 12~15 |
