Product Details:
|
Prodution Name: | High Carbon Steel Wire 1450Mpa Concrete Steel Fiber Reinforcement Steel Fiber | Material: | Drawing Wire 6.5mm |
---|---|---|---|
Coated: | Annealed | Tensile Strength: | >1070Mpa |
Shape: | 3D Hooked Ends | Application: | Concrete |
Design: | Insutrial | Warranty: | One Year More |
High Light: | high carbon concrete steel fiber,1450mpa concrete steel fiber,annealed steel fiber reinforced concrete |

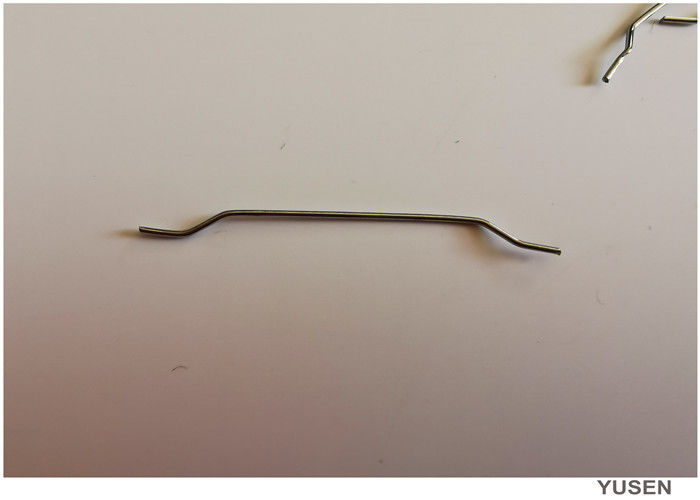

High Carbon Steel Wire 1450Mpa Concrete Steel Fiber Reinforcement Steel Fiber
Concrete Steel Fiber Introduction
Glued steel fiber and loose steel fiber are the two kinds of concrete fibers.
Steel fibers can be made of steel wire,or glass fiber,Polyethylene.Then tensile strength ranges from 1000Mpa to 2850Mpa.
Adopting steel fibers into the concrete mix provide new mechanical properties. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb.
Steel fiber concrete flooring can provide superior resistance to minimize cracks in hardened concrete, as well as maximum resistance to withstand heavy loads, either dynamic or static. If you decide to use steel fiber concrete
flooring, you can select to use a ‘joint-less floor’. Joint-less floors are floors that have minimal joints, providing spaces without joints as large as 40 or 50-meter span wide.
Concrete Steel Fiber Specs
Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
In mechanical and performance terms, by adding steel fibers to the concrete mix can:
Package and Delivery:
