Product Details:
|
| Product Name: | Construction Bulding Material Hooked End Loose Concrete Steel Fiber For Concrete Components | Key Words: | Steel Fiber |
|---|---|---|---|
| Logo: | Yusen | Aspect Ratio: | 60-80 |
| Dosage: | 21kgs/m3 | Tensile Strength: | 1160Mpa |
| Standard: | ASTM | ||
| High Light: | construction building material micro steel fiber,concrete components micro steel fiber,hooked end loose concrete steel fiber |
||
Construction Bulding Material Hooked End Loose Concrete Steel Fiber For Concrete Components
Steel Fiber Introduction
Steel fiber is a metal reinforcement. Steel fiber for reinforcing concrete is defined as short, discrete lengths of steel fibers with an aspect ratio from about 30 to 100, with different cross-sections, a and that are sufficiently small to be
randomly dispersed in an unhardened concrete mixture using the usual mixing procedures.nd that are sufficiently small to be randomly dispersed in an unhardened concrete mixture using the usual mixing procedures.

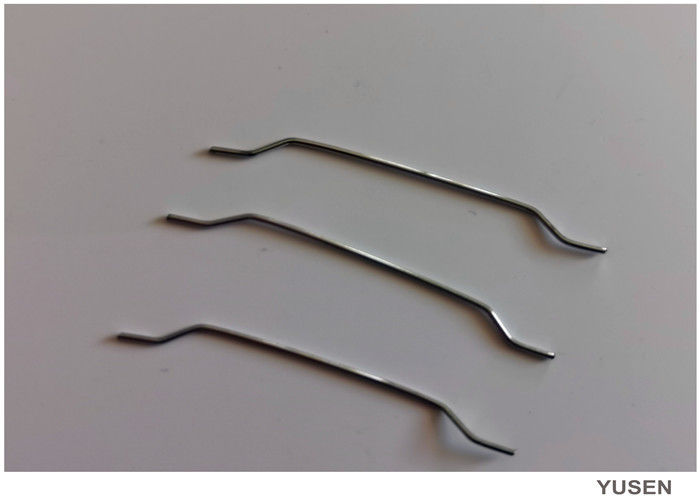

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Steel fibre concrete (SFC) has also been employed as slabs, bridge decks, airport pavements, parking areas, and cavitation/erosion environments, as well as worldwide for the production of highway slabs. Steel fibre high-strength
concrete (SFHSC) is an option for the design of critical regions in earthquake-resistant structures exposed to impact and flatigue.
Specifications:
Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
FAQ:
1. Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
Application:
