Product Details:
|
| Product Name: | Micro Steel Fiber For Concrete Reinforcement | Key Word: | Steel Fibre |
|---|---|---|---|
| Material: | Steel Wire | Dosage: | 40kgs/m3 |
| Tensile Strength: | 2550Mpa | Application: | Industrial Flooring |
| High Light: | 2550mpa fibre steel reinforced concrete,micro fibre steel reinforced concrete,2550mpa steel fiber reinforced concrete |
||

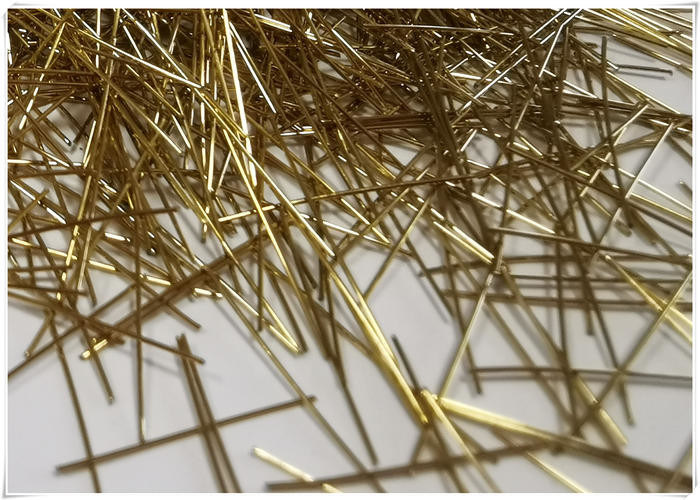

Micro Steel Fiber for Concrete Reinforcement
Micro steel fiber Introduction
This micro steel fiber is made of copper wire.which is the most important materials of UHPC.
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,
impact and fatigue.
Micro steel fiber is widely used in the high speed railway slab, expressway, RPC coverplates and
UHPC constructional components
Specification of copper coated steel fiber for concrete:
| Micro Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-0.22*13 | 0.22 | 13 | 59 | >2500 | |||||
| YS-0.2*6 | 0.2 | 6 | 30 | >2500 | |||||
| YS-0.3*18 | 0.3 | 18 | 60 | >2500 | |||||
| YS-0.3*20 | 0.3 | 20 | 66 | >2500 | |||||
How and When the Fiber is Added
Typically the fibers are added at the batch plant, just after all concrete aggregates are being mixed.
Some people would request to have the fiber added at the job site, but then the QA/QC should have more
control on how much fiber is added.
Applications :
UHPC Concrete
Railway Sleepers
Jointless connection industrial floor
Benefits
Good dispersion performance in concrete
Insist impact,fatigue
Significantly improve the toughness of concrete
Shrinkage control and ductility in the reinforcement concrete
