Product Details:
|
| Product Name: | Refractory Material Stainless Steel Fiber 0.4*20mm For Reinforce Castables | Material: | Stainless Steel |
|---|---|---|---|
| Dia.: | 0.4mm | Length: | 20mm |
| Application: | Reinforce Castables | Standard: | ISO |
| High Light: | refractory material stainless steel fiber,reinforce castables stainless steel fiber,0.4*20mm stainless steel fiber for refractory |
||

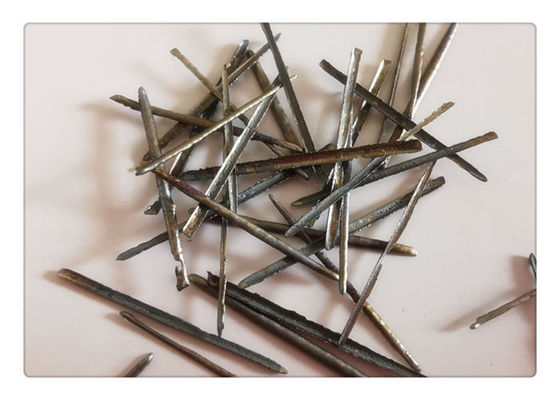

Refractory Material Stainless Steel Fiber 0.4*20mm For Reinforce Castables
Stainless Steel Fiber Specification
The stainless steel fiber is made of stainless steel ingots , melt the stainless steel ingots with 1500-1600 degree steel liquid in the electric stove, and then produce the different specification steel fibers with a high speed rotating melt-extracted steel wheel. The liquid steel blows out from slot with centrifugal force at extremely high speed while cooling forming.
Specification of Stainless Steel Fiber
| Equivalent Diameter | Length | Aspect ratio | Material | Melting Point |
| 0.30-0.40 mm | 20mm,25mm,30mm,35mm | 40-45 |
330 310 316 316L 304 446 430 |
1400-1425℃ 1400-1450℃ 1425-1510℃ 1500-1580℃
|
| 0.40-0.50 mm | 20mm,25mm,30mm,35mm | 45-50 | ||
| 0.45-0.55 mm | 20mm,25mm,30mm,35mm | 50-55 | ||
| 0.55-0.60 mm | 20mm,25mm,30mm,35mm | 55-60 |
Performance of steel fibers:
High capacity of tensile strength
High thermal compatibility.
Packing:
20kg/carton,20kg/bag,or according to your requirement.
Chemical composition of steel fiber:
| Category | Chemical Composition(%) | ||||
| C | Si | Mn | Ni | Cr | |
| 304 | ≤0.15 | ≤1.5 | ≤1.5 | 8-12 | 17-20 |
| 310 | ≤0.2 | ≤1.5 | ≤1.5 | 19-22 | 24-27 |
| 330 | ≤0.2 | ≤1.5 | ≤1.5 | 33-37 | 14-17 |
| 430 | ≤0.2 | ≤1.5 | ≤1.5 | ≤0.7 | 17-19 |
| 446 | ≤0.2 | ≤1.5 | ≤1.5 | ≤0.7 | 22-27 |
Packing and delivery of steel fiber:
