Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm

Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm
Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm

Large Image :  Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm

Product Details:
Place of Origin: China
Brand Name: Yusen
Certification: ISO CE
Model Number: YS-0.2*6
Payment & Shipping Terms:
Minimum Order Quantity: 1T
Price: 1000-1400USD/t
Packaging Details: small bag/carton/pallet
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500T/m

Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm

Description
Product Name: Copper Coated Micro Steel Fibre 2500Mpa Ultra High Tensile Strength For Concrete Key Word: Steel Fibre
Material: Steel Wire Copper Coated Surface: Bright And Yellow
Aspect Ratio: 30 Application: High Speed Railway Panels
High Light:

railway metal fiber reinforced concrete

,

copper coated metal fiber reinforced concrete

,

0.22mm steel fibre reinforced cement concrete

Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm​

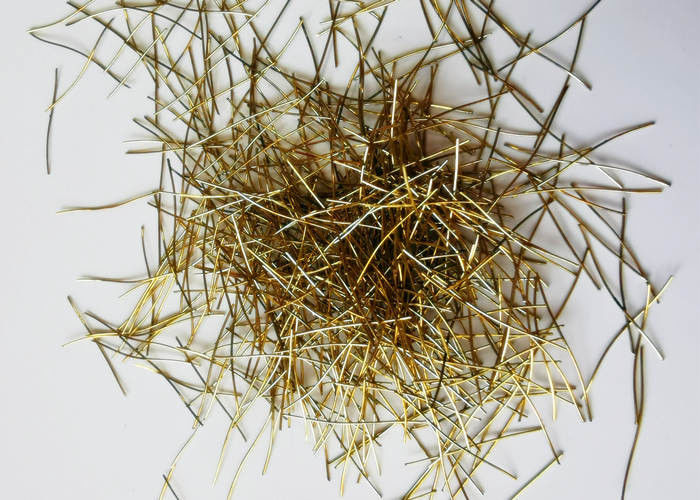

Micro steel fiber Introduction



Micro Steel Fibre is used in High Performance densified concrete system.
They are available in different diameter & length sizes,mostly are 0.2mm ,0.3mm in diameter and length in 6mm and 13mm.



Micro steel fibers are made of copper-coated steel wire which is the most important materials of UHPC. Because UHPC has the
features of extreme high strength. It is a good and a new kind of construction materials. Micro steel fiber is widely used in the
high speed railway slab, expressway, RPC coverplates and UHPC constructional components.



Dosage: 120kg/m3-200kg/m3
Mixing: When pouring sand and aggregates into the hopper, mix an appropriate amount of micro steel fibers
evenly, and then add cement ,mix for 2 minutes.



Application of Micro Steel Fiber





  • Railway;
  • Pipeline;
  • RPC cover panel and precast unit
  • High wear-resistant material
  • Exterior wall painting
  • Important engineering components



Specification of copper coated steel fiber for concrete:



Micro Steel Fiber Model Diameter (mm) Length (mm) Aspect ratio (mm) Tensile strength (MPa)
YS-0.22*13 0.22 13 59 >2500
YS-0.2*6 0.2 6 30 >2500
YS-0.3*18 0.3 18 60 >2500
YS-0.3*20 0.3 20 66 >2500



In mechanical and performance terms, by adding steel fibers to the concrete mix can:



Increase and get a stable of tensile strength

Improve concrete bonding

Increase impact resistance

Increase fatigue effect

Increase crack resistance

          Increase the concrete performance against thermal variations





Packing and Delivery



Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm 0

Railway Copper Coated Metal Fiber Reinforced Concrete 0.22mm 1
