Product Details:
|
| Product Name: | 1400Mpa High Tensile Strength Stainless Steel Fiber High Temperature Resistance | Key Worlds: | Steel Fiber |
|---|---|---|---|
| Material: | Stainless Steel Wire | Packing: | 20kgs/bag |
| Thickness: | 0.5mm | Application: | Highway |
| High Light: | high tensile strength stainless steel fiber,high temperature resistance stainless steel fiber,1400mpa stainless steel fibres for concrete |
||
1400Mpa High Tensile Strength Stainless Steel Fiber High Temperature Resistance
Stainless Steel Fiber Specification
We produce kinds of stainless steel fibers. Stainless steel fibers are widely used in
the refractories and in the reinforced concrete to increase the strength under
tension. These fibers are available in different shapes and cut length.

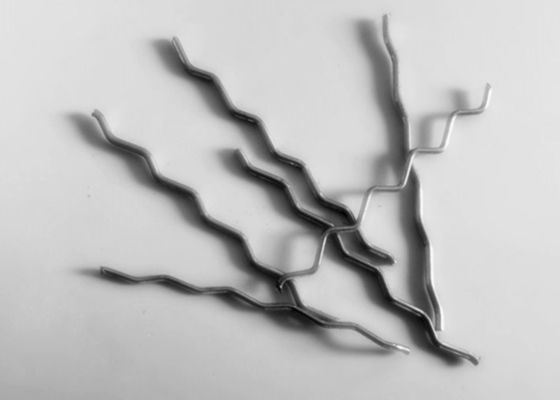

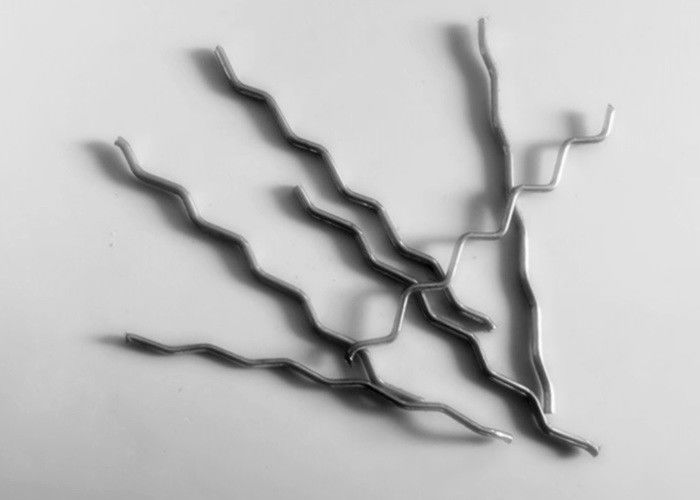

Specifications of Waved Steel Fiber:
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Yusen Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
| Shotcrete | 40-60 | 24-36 |
| Roads | 20-25 | 12~15 |
Advantage:
FQA:
1. Are you factory/ manufacturer of trader?
We are factory in Anping with 24000㎡. So it will help you save money and time in delivery.
2. What is your minimum order quantity?
1T. However, we understand you need to place small order for a trial,so sample avaiable and free;but the express fee is by each of your side.
3. which countries do you export to?
Our products are exported to Europe,North of America,South Asia.
4. can we have our own logo on items?
Yes, no problem.
Packing and Delivery
