Product Details:
|
| Product Name: | YS-50/30 Concrete Hooked Ends Steel Fiber With High Tensile Strength 1100Mpa | Material: | Steel Wire |
|---|---|---|---|
| TS: | >1100Mpa | Color: | Grey |
| Applicant: | Sprayed Concrete | Diameter: | 0.55mm |
| High Light: | YS-50/30 High Tensile Strength Steel Fiber,0.55mm High Tensile Strength Steel Fiber |
||

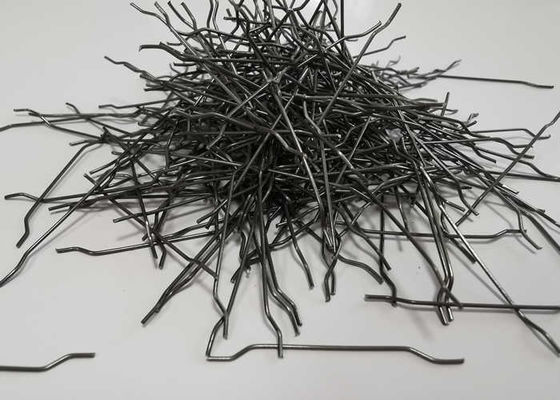

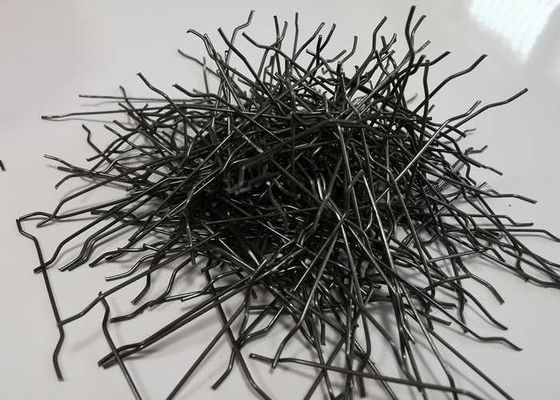

YS-50/30 Concrete Hooked Ends Steel Fiber With High Tensile Strength 1100Mpa
Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked End Steel Fiber
| Hooked End Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1000 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1000 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1000 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1000 | |||||
Advantage of Hooked End Steel Fiber
1. Totally or partially replace the steel bar,save material and labor cost
2. Make the concrete slab thinner
3. Wider joint spacing
4 . Easy to use
5. Speed up the process of construction
6. Insisting crack
7. Shock resistance
8. Anti-fatigue
9. High impact resistance
10. Fatigue endurance limit greater
11. Reducing the maintenance cost
12. Long service lifetime
Application
Package and Delivery
