Product Details:
|
| Product Name: | 45/35 1100MPA Concrete Loose Hooked Ends Steel Fiber For Concrete Reinforcement | Material: | Steel Wire |
|---|---|---|---|
| TS: | >1000Mpa | Color: | Grey |
| Applicant: | Sprayed Concrete | Diameter: | 0.75mm |

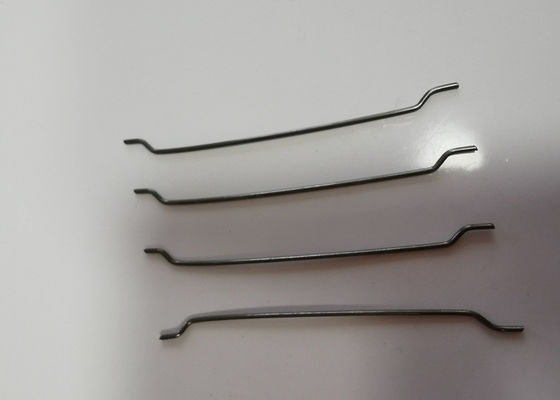

45/35 1100MPA Concrete Loose Hooked Ends Steel Fiber for Concrete Reinforcement
Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked End Steel Fiber
| Hooked End Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Advantage of Hooked End Steel Fiber
1. Totally or partially replace the steel bar,save material and labor cost
2. Make the concrete slab thinner
3. Wider joint spacing
4. Easy to use
5. Speed up the process of construction
6. Insisting crack
7. Shock resistance
8. Anti-fatigue
9. High impact resistance
10. Fatigue endurance limit greater
11. Reducing the maintenance cost
12. Long service lifetime
FAQ:
1. Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
5. What is your minimum order of quantity?
1ton.
6. What is your payment terms.
T/T, L/C at sight, usance letter of credit, Western Union.
