Product Details:
|
| Product Name: | 65/60 Carbon Concrete Reinforced Hooked Ends Steel Fiber For Industrial Flooring | Diameter: | 0.75mm |
|---|---|---|---|
| Length: | 50mm | TS: | 1000Mpa |
| Applicant: | Road Pavement | Function: | Concrete Reinforcement |
| Standard: | ASTM | Packing: | 15kgs/bag |

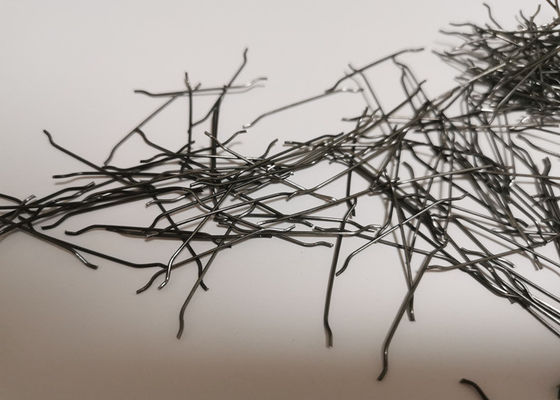

65/60 Carbon Concrete Reinforced Hooked Ends Steel Fiber For Industrial Flooring
Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1350MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked End Steel Fiber
| Hooked Ends Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Application:
Fibers are often used to replace the nominal conventional steel fabric in ground bearing slabs. Steel fibers are increasingly being used in suspended ground floor slabs on piles to replace much, and in many cases all, of the reinforcement. Savings in the cost of supplying and fixing the conventional welded fabric reinforcement that is replaced can offset the extra cost of adding fibers to the concrete. There may also be health and safety benefits resulting from the reduced handling of reinforcement. Also, problems caused by the misplacement of conventional steel in the depth of the slab are avoided.
FAQ:
1.Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2.How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3.Can you accept OEM?
Yes, we can.
4.What is your delivery time?
Generally it needs 10days for 20’ container.
5.What is your minimum order of quantity?
1ton.
6.What is your payment terms.
T/T, L/C at sight, usance letter of credit, Western Union.
Delivery and Packing
