Product Details:
|
| Product Name: | Carbon Hooked Ends Concrete Steel Fiber For Concrete Reinforcement | Material: | Steel Wire |
|---|---|---|---|
| TS: | 1100Mpa | Color: | Grey |
| Applicant: | Hydro Power Station | Diameter: | 0.6mm |
| Length: | 30mm | Standard: | ASTM 820 CE |

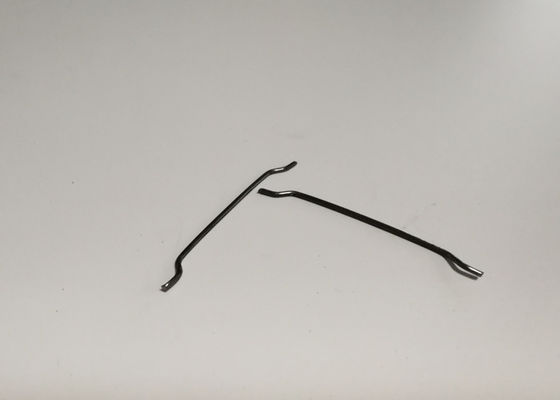

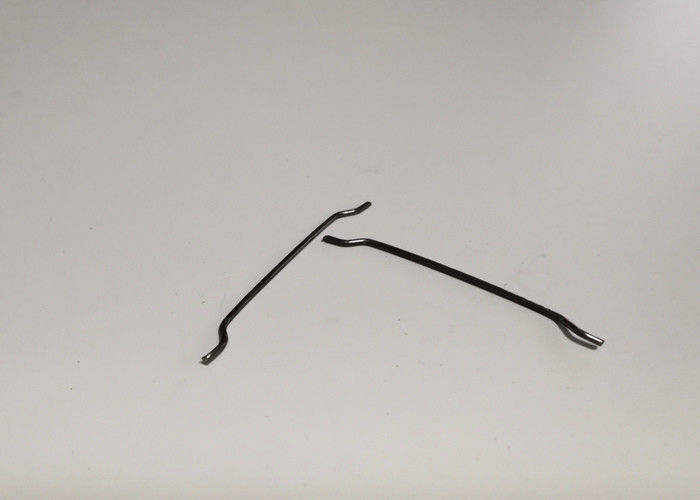

Carbon Hooked Ends Concrete Steel Fiber for Concrete Reinforcement
Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1350MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked End Steel Fiber
| Hooked Ends Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Application:
FAQ:
1. Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
5. What is your minimum order of quantity?
1ton.
6. What is your payment terms.
T/T, L/C at sight, usance letter of credit, Western Union.
