Product Details:
|
| Product Name: | Glued Hooked End Concrete Steel Fiber | Material: | Q195 |
|---|---|---|---|
| Color: | Grey | Tensile Strength: | 1200Mpa |
| Shape: | Deformed | Application: | Concrete Slab |
| Standard: | ASTM A 820 | Warranty: | 1 Year |

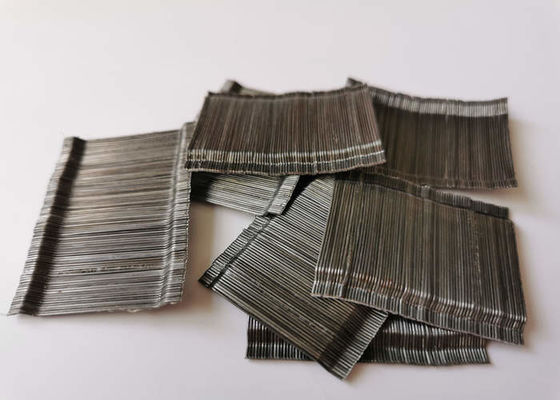

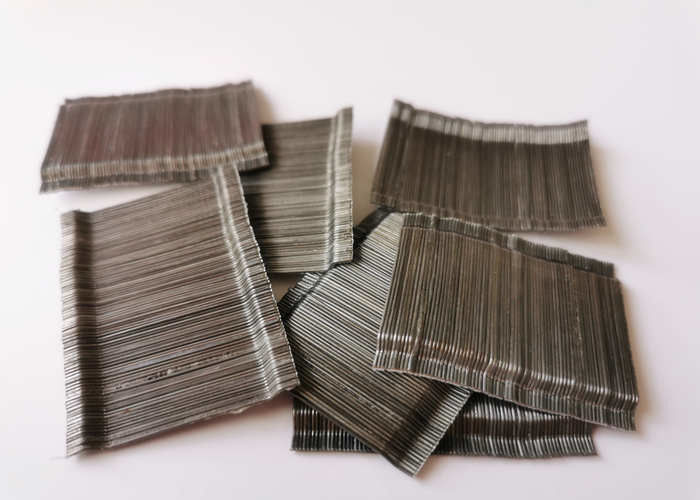

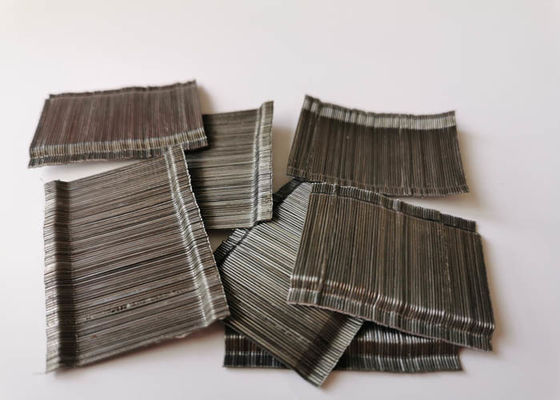

Glued Hooked End Concrete Steel Fiber
Glued Steel Fiber Introduction:
Glued steel fiber refers to loose steel fiber glued together in a row way.
It is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Glued Steel Fiber Specs:
| Glued Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60BG | 1 | 60 | 60 | ≥1100 | |||||
| YS-50/50BG | 1 | 50 | 50 | ≥1100 | |||||
| YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | |||||
| YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | |||||
| YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | |||||
| YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | |||||
| YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25BG | 0.4 | 25 | 60 | ≥1100 | |||||
Glued steel Fiber Application
Glued Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
Package and Delivery:
