Product Details:
|
| Product Name: | Construction Metal Glued Steel Fiber | Material: | Cold Drawing Wire |
|---|---|---|---|
| Color: | Gray | Tensile Strength: | 1350Mpa |
| Application: | Highways | Standard: | ASTM A 820 |
| High Light: | 1350 Mpa Construction Steel Fiber,Gray Construction Steel Fiber,60mm Metal Fibers For Concrete |
||

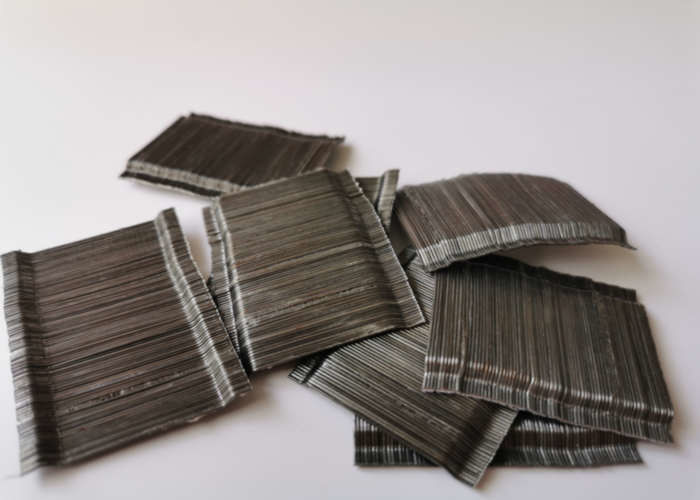

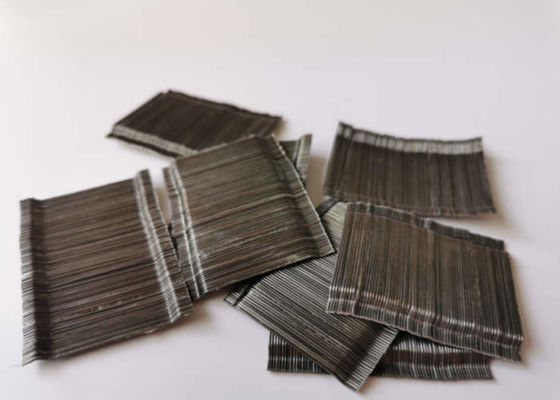

Construction Metal Glued Steel Fiber
Glued Steel Fiber Introduction:
Glued steel fiber refers to loose steel fiber glued together in a row way.
It is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Glued Steel Fiber Specs:
| Glued Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60BG | 1 | 60 | 60 | ≥1100 | |||||
| YS-50/50BG | 1 | 50 | 50 | ≥1100 | |||||
| YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | |||||
| YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | |||||
| YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | |||||
| YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | |||||
| YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25BG | 0.4 | 25 | 60 | ≥1100 | |||||
Glued Steel Fiber Mixing Proportion
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
| Shotcrete | 40-60 | 24-36 |
| Roads | 20-25 | 12~15 |
Package and Delivery:
Exhibition of Steel Fiber
