Product Details:
|
| Product Name: | 65/35 Hooked End Concrete Glued Steel Fiber | Material: | Carbon Wire |
|---|---|---|---|
| Color: | Gray | Tensile Strength: | 1280 Mpa |
| Application: | Bridge Deck | Standard: | CE |
| High Light: | 65/35 Hooked End Steel Fibre,50mm Hooked End Steel Fibre |
||

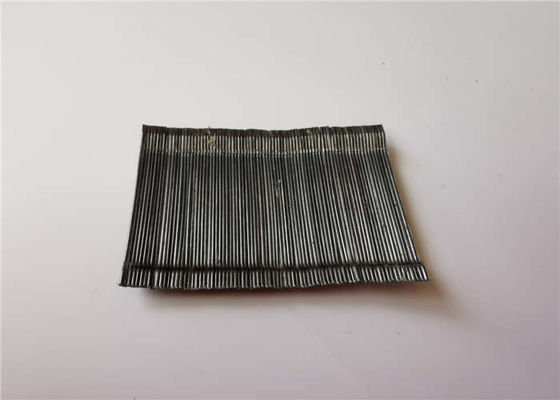

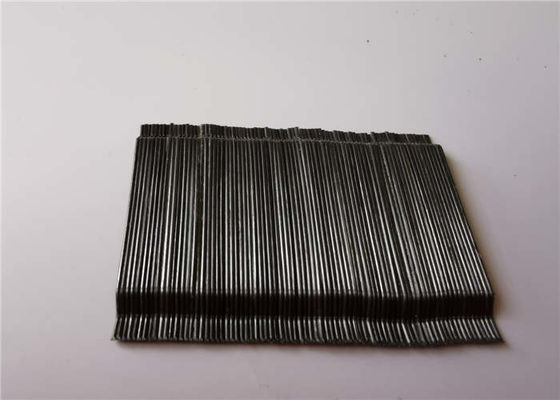

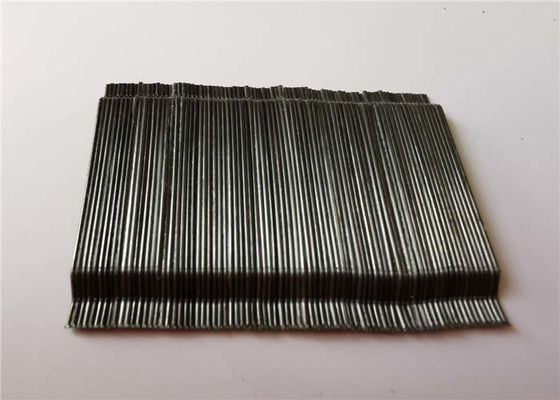

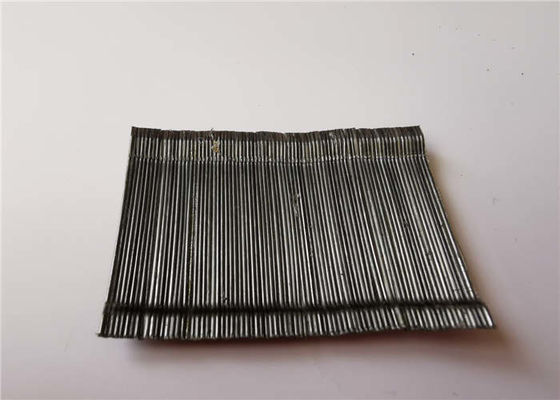

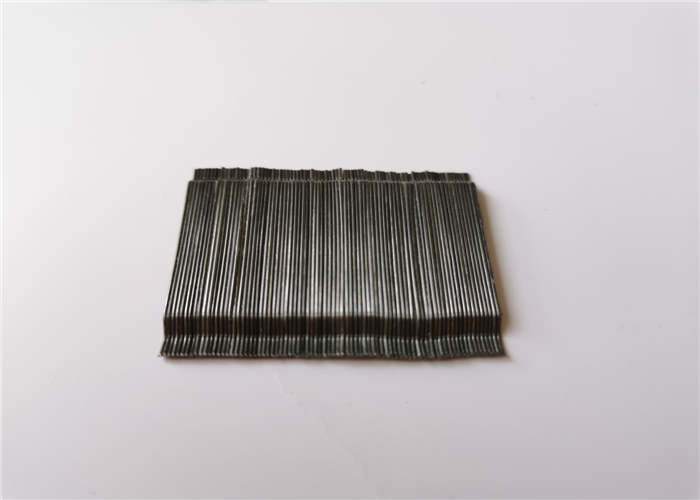

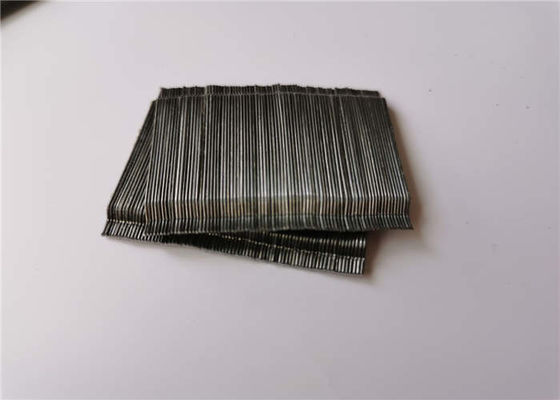

65/35 Hooked End Concrete Glued Steel Fiber
Glued Steel Fiber Introduction:
Glued steel fiber refers to loose steel fiber glued together in a row way.
It is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Glued Steel Fiber Specs:
| Glued Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60BG | 1 | 60 | 60 | ≥1100 | |||||
| YS-50/50BG | 1 | 50 | 50 | ≥1100 | |||||
| YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | |||||
| YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | |||||
| YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | |||||
| YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | |||||
| YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25BG | 0.4 | 25 | 60 | ≥1100 | |||||
Glued Steel Fiber Mixing Proportion
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
After-sales Service
1. Finish goods on time
2. Update the production schedule
3. Arrange shipment
4. Follow up the rountine of shipment and report closely
5. Return vistit after receiving goods
Package and Delivery:
