Product Details:
|
| Product Name: | Construction Material Concrete Steel Wire Glued Steel Fiber | Tensile Strength: | 1270Mpa |
|---|---|---|---|
| Shape: | Bundle Together | Packing: | Wooden Pallet |
| Application: | Construction | Certificate: | CE , ASTM, ISO |
| Feature: | Shock Resistance | ||
| High Light: | 1270mpa glued steel fiber,shock resistance glued steel fiber,1270mpa concrete steel fiber |
||

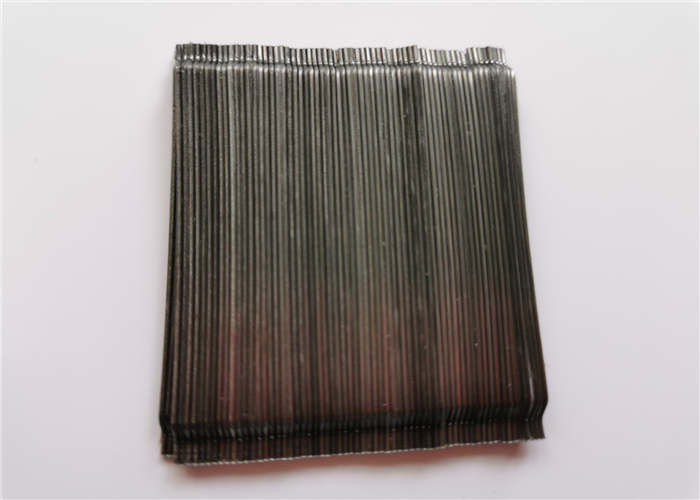

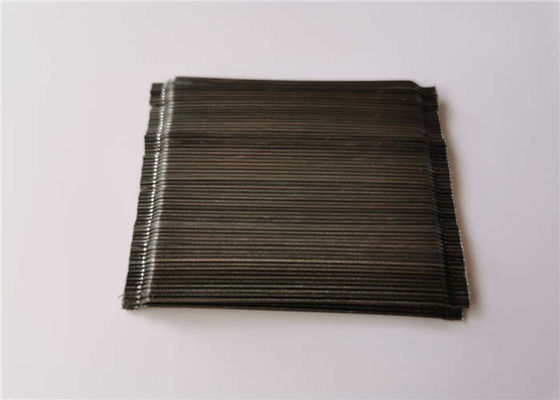

Construction Material Concrete Steel Wire Glued Steel Fiber
Glued Steel Fiber Introduction
Glued steel fiber refers to loose steel fiber glued together in a row way.
It is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength.
Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa.
Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specs of Glued Steel Fiber
| Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60BG | 1 | 60 | 60 | ≥1100 | ||||
| YS-50/50BG | 1 | 50 | 50 | ≥1100 | ||||
| YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | ||||
| YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | ||||
| YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | ||||
| YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | ||||
| YS-50/30BG | 0.6 | 30 | 50 | ≥1100 | ||||
| YS-65/35BG | 0.53 | 35 | 65 | ≥1100 | ||||
| YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | ||||
| YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | ||||
| YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | ||||
| YS-60/25BG | 0.4 | 25 | 60 | ≥1100 | ||||
Yusen Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
| Shotcrete | 40-60 | 24-36 |
| Roads | 20-25 | 12~15 |
