Product Details:
|
Product Name: | Construction And Building Hooked Ends Loose Steel Fiber With Shocking Resistance | Material: | Rod |
---|---|---|---|
Diameter: | 0.4mm | Length: | 25mm |
TS: | >1120Mpa | Color: | Bright |
Packing: | 20kgs/carton | Applicant: | Shotcrete Concrete |
High Light: | Hooked Ends Loose Steel Fibre,Shocking Resistance Loose Steel Fibre |

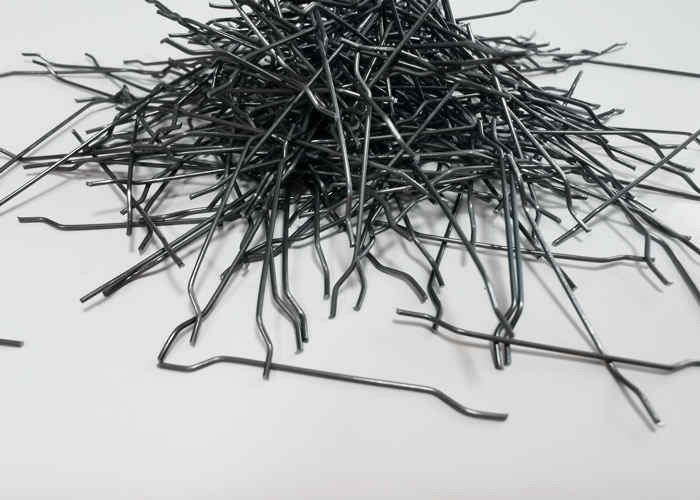

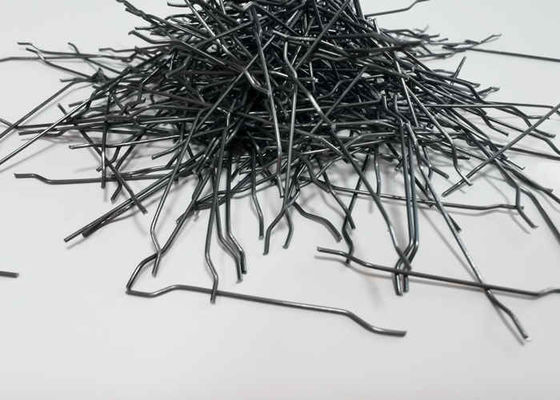

Construction and Building Hooked Ends Loose Steel Fiber with Shocking Resistance
Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, this cold drawn steel wire has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa,1200Mpa,1300Mpa,1500Mpa and even can reach 1800Mpa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked Ends Loose Steel Fiber
Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Mixing proportion of Hooked Ends Steel Fiber
Commercial and Residential slabs | 40-100 | 24-60 |
Cement Conduits | 100-120 | 60-72 |
Cesspools | 40 | 24 |
Shotcrete | 40-60 | 24-36 |
Roads | 20-25 | 12~15 |
FQA
1. Are you factory/ manufacturer of trader?
We are factory in Anping with 24000㎡. So it will help you save money and time in delivery.
2. What is your minimum order quantity?
1T. However, we understand you need to place small order for a trial,so sample avaiable and free;but the express fee is by each of your side.
3.How long for the transit time?
To South-East Asia,generally 5-20days on sea,Europe takes 30-40day,
US needs10-15day,while South America 30-50days.
4.How is the package?
Small bag, bulk bag,carton avaiable.
5.Can you do OEM?
Yes, no problem for us.
