Product Details:
|
| Product Name: | Wholesales Building Hooked End Steel Fiber For Fiber Concrete | Material: | Steel |
|---|---|---|---|
| Dia.: | 0.4mm | Packing: | 1000kgs/bag |
| TS: | 1100Mpa | Applicant: | Precast Concrete |
| High Light: | Precast Concrete Steel Fiber,1300 Mpa Loose Steel Fiber |
||

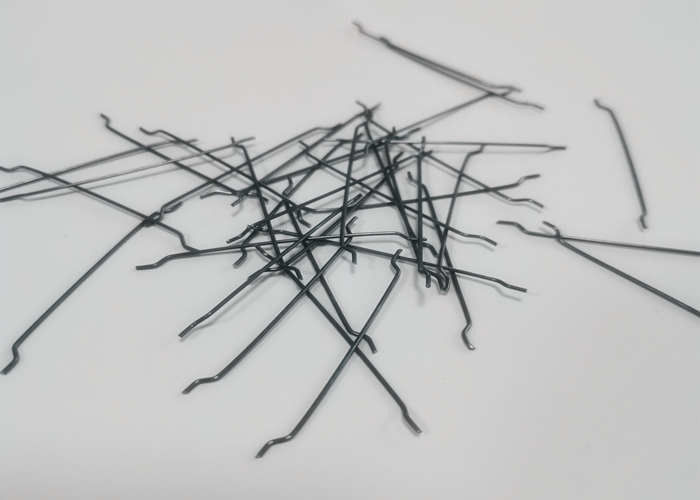

Wholesales Building Hooked End Steel Fiber For Fiber concrete
Hooked Ends Loose Steel Fiber introduction
Steel fiber refers to the aspect ratio (the ratio of fiber length to diameter) made by cutting thin steel wire, cold-rolled strip shearing, steel ingot milling or rapid condensation of molten steel. When the fiber section is non-circular, the equivalent section circle is converted The diameter of the area) is 40 to 80 fibers.
The properties of steel fibers produced by different preparation methods are different. Although steel fiber came out not long ago, it has become more and more widely used and more and more types
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, this cold drawn steel wire has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa,1200Mpa,1300Mpa,1500Mpa and even can reach 1800Mpa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Mixing proportion of Hooked Ends Steel Fiber
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Cemetery | 25 | 15 |
| Road | 20-25 | 12-15 |
FQA
1. Are you factory/ manufacturer of trader?
We are factory in Anping with 24000㎡. So it will help you save money and time in delivery.
2. How long for the transit time?
To South-East Asia,generally 5-20days on sea,Europe takes 30-40day,
US needs10-15day,while South America 30-50days.
3. How is the package?
Small bag, bulk bag,carton avaiable.
After-sales Service
1. Finish goods on time
2. Update the production schedule
3. Arrange shipment
4. Follow up the rountine of shipment and report closely
5. Return vistit after receiving goods
