Product Details:
|
| Product Name: | High Tensile Strength Loose Hooked End Steel Fiber For Construction | Material: | Best Steel Wire |
|---|---|---|---|
| Diameter: | 0.5mm | Length: | 25mm |
| TS: | >1170Mpa | Color: | Gray |
| Packing: | 20kgs/box | Applicant: | Pavement |
| High Light: | Hooked Ends Steel Fiber 0.5mm,25mm Hooked Ends Steel Fiber |
||

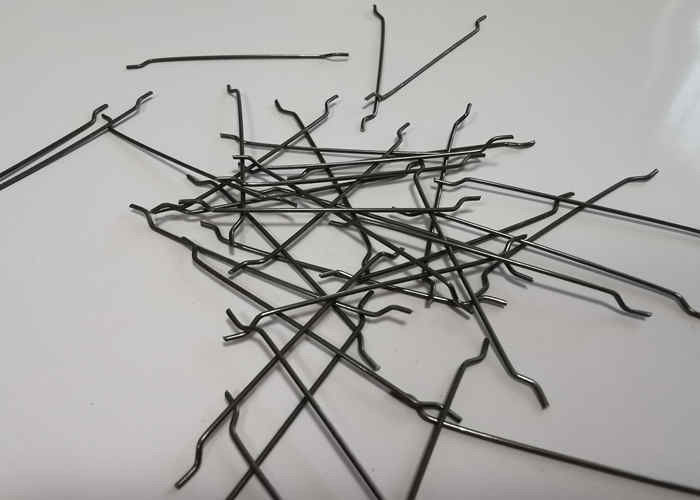

High Tensile Strength Carbon Loose Hooked End Steel Fiber For Construction
Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, this cold drawn steel wire has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa,1200Mpa,1300Mpa,1500Mpa and even can reach 1800Mpa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Mixing proportion of Hooked Ends Steel Fiber
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Road | 20-25 | 12-15 |
Application of Steel Fiber
A) Industrial Flooring
B) Shotcrete for Tunel,Dam and Hydropower station
C) Precast concrete structures
D) Pavement
E) Heavy equipment flooring/warehouse flooring
