Product Details:
|
| Product Name: | 0.6-1.0mm Loose Hooked End Steel Fiber For Concrete Reinforcing | Material: | Low Carbon Steel |
|---|---|---|---|
| Diameter: | 0.5mm | Length: | 25mm |
| TS: | >1120Mpa | Color: | Gray |
| Shape: | Hooked Ends And Straight In Middle | Applicant: | Construction, Concrete Reinforcement |
| High Light: | 1.0mm Hooked Ends Steel Fiber,Hooked Ends Steel Fiber 25mm |
||

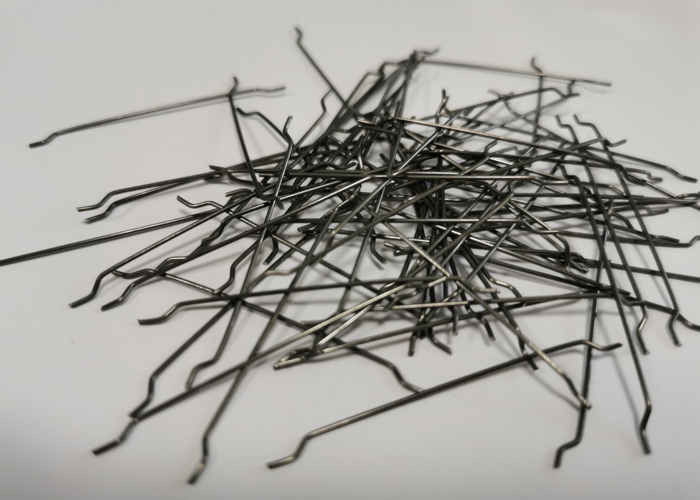

0.6-1.0mm Loose Hooked End Steel Fiber For Concrete Reinforcing
Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, this cold drawn steel wire has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1000MPa,1200Mpa,1300Mpa,1500Mpa and even can reach 1800Mpa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Application of Steel Fiber
A) Industrial Flooring
B) Shotcrete for Tunel,Dam and Hydropower station
C) Precast concrete structures
D) Pavement
E) Heavy equipment flooring/warehouse flooring
What does the steel fiber attract you?
A) HIgh Tensile strength resistance
B) Fatigue and impact resistance
E) Save time and money
F) Easy to mix
G) Longer service time
Package and Delivery
Fair and Us
