Product Details:
|
| Product Name: | Galvanized Razor Wire | Key Words: | Barbed Wire |
|---|---|---|---|
| Material: | Low Carbon Steel Wire | Surface Treatment: | Galnivazed |
| Razor Type: | Cross Razor | Diameter Per Coil: | 20cm 30cm 50cm 100cm |
| High Light: | Galvanized Razor Barbed Wire Fence,30cm Razor Barbed Wire,Hot Dipped Galvanized Razor Wire |
||

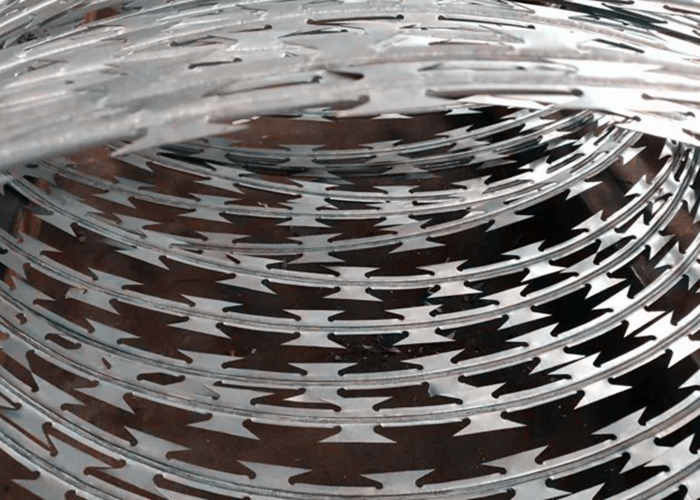

Hot Dipped Galvanized Fencing Razor Barbed Wire
Razor barbed wire is also named concertina coils or razor type barbed wire.
Razor barbed wire is manufactured using a central core of high
tensile wire - around which a tape of razor sharp barbs is machine crimped. The resulting
razor wire is therefore exceedingly difficult to cut using hand tools.
Razor barbed wire is very strong and reinforced with a steel coil
which makes it very hard to bend, while the barbs have a piercing and gripping action
Specification of Razor Bared Wire
| Item | Thickness (mm) | Wire dia. (mm) | Barb length (mm) | Barb width (mm) | Barb spacing (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
FAQ:
1. Are you the factory ?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM ?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
5. What is your minimum order of quantity?
1ton.
6. What is your payment terms.
T/T, L/C at sight, usance letter of credit, Western Union.
