Product Details:
|
| Product Name: | 200g Zinc Coated Razor Barbed Wire For Protecting | Key Words: | Barbed Wire |
|---|---|---|---|
| Material: | Zinc Coated Wire | Surface: | Bright |
| Zinc Coated: | 10g-200g/m2 | Packing: | 50kgs/coil |
| High Light: | BTO22 Razor Barbed Wire,Razor Barbed Wire Concertina Coil,200g/m2 Zinc Coated Barbed Wire |
||
200g Zinc Coated Razor Barbed Wire For Protecting

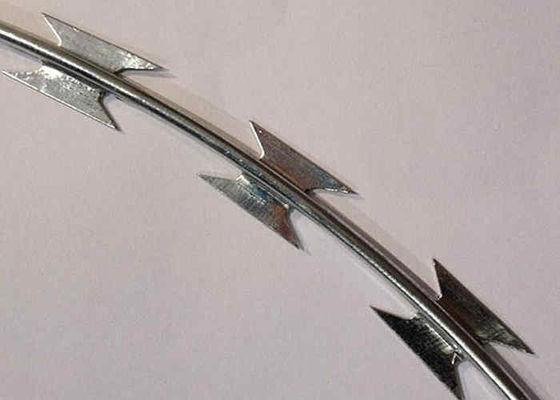

Razor barbed wire is also named concertina coils or razor type barbed wire.
Razor barbed wire is manufactured using a central core of high
tensile wire - around which a tape of razor sharp barbs is machine crimped. The resulting
razor wire is therefore exceedingly difficult to cut using hand tools.
Materials: Galvanized steel wire, stainless steel wire, etc.
Weaving and Characteristics: Be woven into product;fastness and good appearance .
Uses: razor barbed wire is widely used by many countries in military field, prisons, detention houses,
government buildings and other national security facilities. It has apparently become the most popular
high-class fencing wire for not only military and national security applications, but also for cottage and
society fence, and other private buildings.
Specification of Razor Bared Wire
| Item | Thickness (mm) | Wire dia. (mm) | Barb length (mm) | Barb width (mm) | Barb spacing (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
