Product Details:
|
| Product Name: | Concrete Buliding Material Glued Hooked End Metal Steel Fiber | Material: | Steel Wire |
|---|---|---|---|
| Secondart: | Not | Shape: | Hooked And Deformed |
| Application: | Concrete Mixed | Tensile Strength: | 1160Mpa |
| Standard: | ASTM A 820 , CE | Warranty: | 1 Year |
| High Light: | astm a 820 glued steel fiber,concrete mixed glued steel fiber |
||

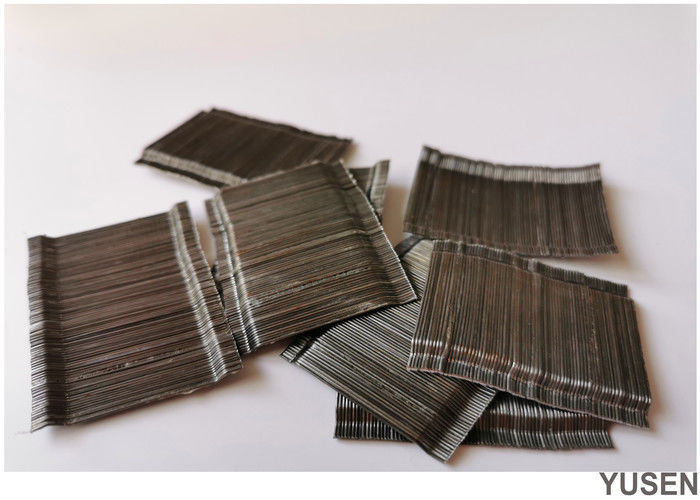

Concrete Buliding Material Glued Hooked End Metal Steel Fiber
Glued Steel Fiber Introduction
Glued steel fiber refers to loose steel fiber glued together,is made of low carbon steel wire,high carbon steel wire.
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking, impact and fatigue.
The biggest difference between loose steel fiber and glued steel fiber is former one easy to block together,while latter
is easy to disperse evenly in the mixed material.
Steel fiber dosage will vary greatly upon the project intended use, and the types of mesh being replaced. Common dosages are in the range between 20-30kg/m3 to 40-50kg/m3 for joint-less floors
Glued Steel Fiber Specs
| Glued Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60BG | 1 | 60 | 60 | ≥1100 | |||||
| YS-50/50BG | 1 | 50 | 50 | ≥1100 | |||||
| YS-65/60BG | 0.9 | 60 | 65 | ≥1100 | |||||
| YS-55/50BG | 0.9 | 50 | 55 | ≥1100 | |||||
| YS-80/60BG | 0.75 | 60 | 80 | ≥1100 | |||||
| YS-45/35BG | 0.75 | 35 | 45 | ≥1100 | |||||
| YS-55/30BG | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-60/30BG | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25BG | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25BG | 0.4 | 25 | 60 | ≥1100 | |||||
Advance of End Hooked Glued Steel Fiber
Technical and engineering support
Package and Delivery:
