Product Details:
|
| Product Name: | Shotcrete Concrete Hooked Ends Steel Fiber Concrete Fiber For Reinforcement | Material: | Q195 Steel Wire |
|---|---|---|---|
| Dia.: | 0.4mm | Packing: | 1000kgs/bag |
| TS: | 1000-1200Mpa | Applicant: | Tunnel And Mining Engineering |
| High Light: | shotcrete concrete hooked ends steel fiber,0.4mm hooked ends steel fiber,hooked ends steel fiber reinforcement |
||

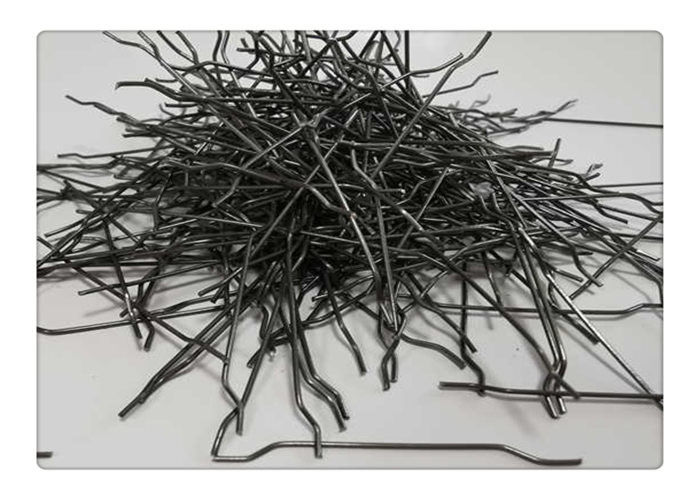

Shotcrete Concrete Hooked Ends Steel Fiber Concrete Fiber For Reinforcement
Steel Fiber introduction
Steel fiber refers to the aspect ratio (the ratio of fiber length to diameter) made by cutting thin steel wire, cold-rolled strip shearing, steel ingot milling or rapid condensation of molten steel. When the fiber section is non-circular, the equivalent section circle is converted The diameter of the area) is 40 to 80 fibers.
The shotcrete steel fiber concrete can support layer with a certain ductility,which can absorb the
brought by deformation of surrounding rocks and also mobilize and stimulate the self-stablizing ability.
The kind steel fiber can save cost of human labors and reduce the risk of rockfall injury,also
can stabilize the surrounding rock.
Specification of Steel Fiber
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
FQA
1. Are you factory/ manufacturer of trader?
We are factory in Anping with 24000㎡. So it will help you save money and time in delivery.
2. How long for the transit time?
To South-East Asia,generally 5-20days on sea,Europe takes 30-40day,
US needs10-15day,while South America 30-50days.
3. How is the package?
Small bag, bulk bag,carton avaiable.
After-sales Service
1. Finish goods on time
2. Update the production schedule
3. Arrange shipment
4. Follow up the rountine of shipment and report closely
5. Return vistit after receiving goods
