Product Details:
|
Product Name: | Concrete Steel Fiber Hooked Ends Steel Fiber For Reinforcement | Material: | Cold Drawing Q195 Steel Wire |
---|---|---|---|
TS: | 1160Mpa | Diameter: | 0.4-1.0mm |
Length: | 25-60mm | Usage: | Precast Slab |
Standard: | CE | Surface: | Smooth |
High Light: | hooked ends metal fibers for concrete,reinforcement metal fibers for concrete,ce standard hooked ends steel fiber |
Concrete Steel Fiber Hooked Ends Steel Fiber For Reinforcement

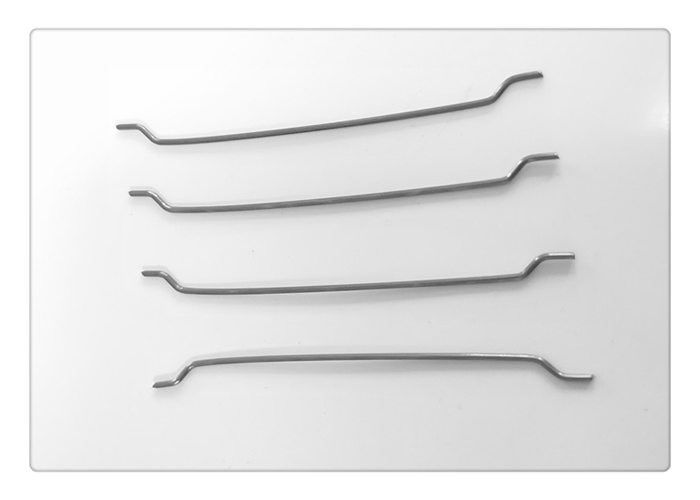

Hooked End Steel Fiber introduction
Yusen Steel fibers are designed specifically for the reinforcement of concrete, mortars and
other cementitious mixes.It is a cold drawn wire fibre deformed with hooked ends which has
perfect performance in the concrete mix.
Yusen Steel fiber is made according to European Standard EN 14889-1:2006 and has been
specifically designed to meet the performance and requirements in the construciton.
Steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties
including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1350MPa.
Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Many types of steel fibers are used for concrete reinforcement. Round fibers are the most common type and their diameter ranges from 0.4 to 1.05mm. Deformed fibers in the form of a bundle are also used. The main advantage of deformed fibers is their ability to distribute uniformly within the matrix.
Specification of Hooked End Steel Fiber
Hooked Ends Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Application:
FAQ:
1. Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
