Product Details:
|
| Product Name: | Single Hooked Ends Steel Wire Steel Fiber For Concrete In Construction And Engineering | Material: | Steel Wire |
|---|---|---|---|
| TS: | >1000Mpa | Color: | Grey |
| Applicant: | Reinforced Concrete | Diameter: | 0.9mm |
| Length: | 50mm | Certificate: | ISO, CE |
| High Light: | 0.9mm steel fiber reinforced concrete,engineering steel fiber reinforced concrete,construction hooked ends steel fiber |
||

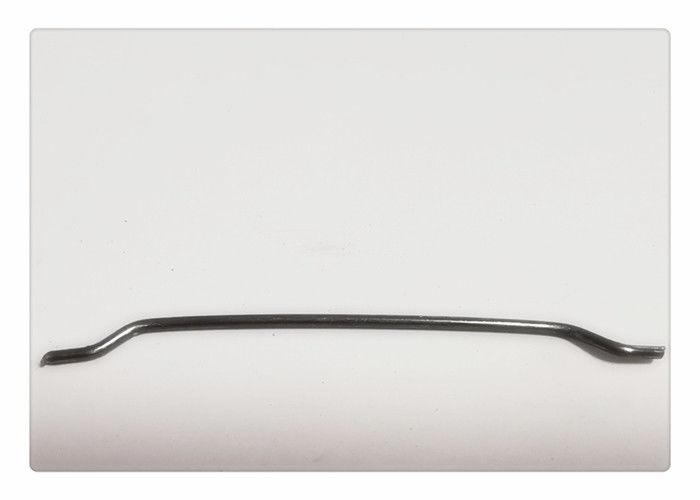

Single Hooked Ends Steel Wire Steel Fiber For Concrete in Construction and Engineering
Hooked Ends Loose Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent
mechanical properties including high tensile strength. Hence, the average tensile strength of the
reinforced fibre surpasses 1000MPa. Due to this high strength,the uniform distribution of fibers,
stresses can be fully dispersed and cracking be effectively controlled.
Yusen Steel fibers are designed specifically for the reinforcement of concrete, mortars and
other cementitious mixes.It is a cold drawn wire fibre deformed with hooked ends which has
perfect performance in the concrete mix.
Yusen Steel fiber is made according to European Standard EN 14889-1:2006 and has been
specifically designed to meet the performance and requirements in the construciton.
Advantage of Hooked End Loose Steel Fiber
Specification of Hooked Ends Loose Steel Fiber
| Loose Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Application
Package and Delivery
